WEN 6.2-Amp 33-Inch Radial Arm Drill Press, Benchtop Design with 5 Speeds and Cast-Iron Construction (4233)

flash sale iconLimited Time Sale
Until the end
04
48
36

US$215.40 cheaper than the new price!!

Free shipping for purchases over $99 ( Details )
Free cash-on-delivery fees for purchases over $99
Please note that the sales price and tax displayed may differ between online and in-store. Also, the product may be out of stock in-store.
Used  US$143.60
quantity

Product details

Management number 220688627 Release Date 2026/05/03 List Price US$143.60 Model Number 220688627
Category

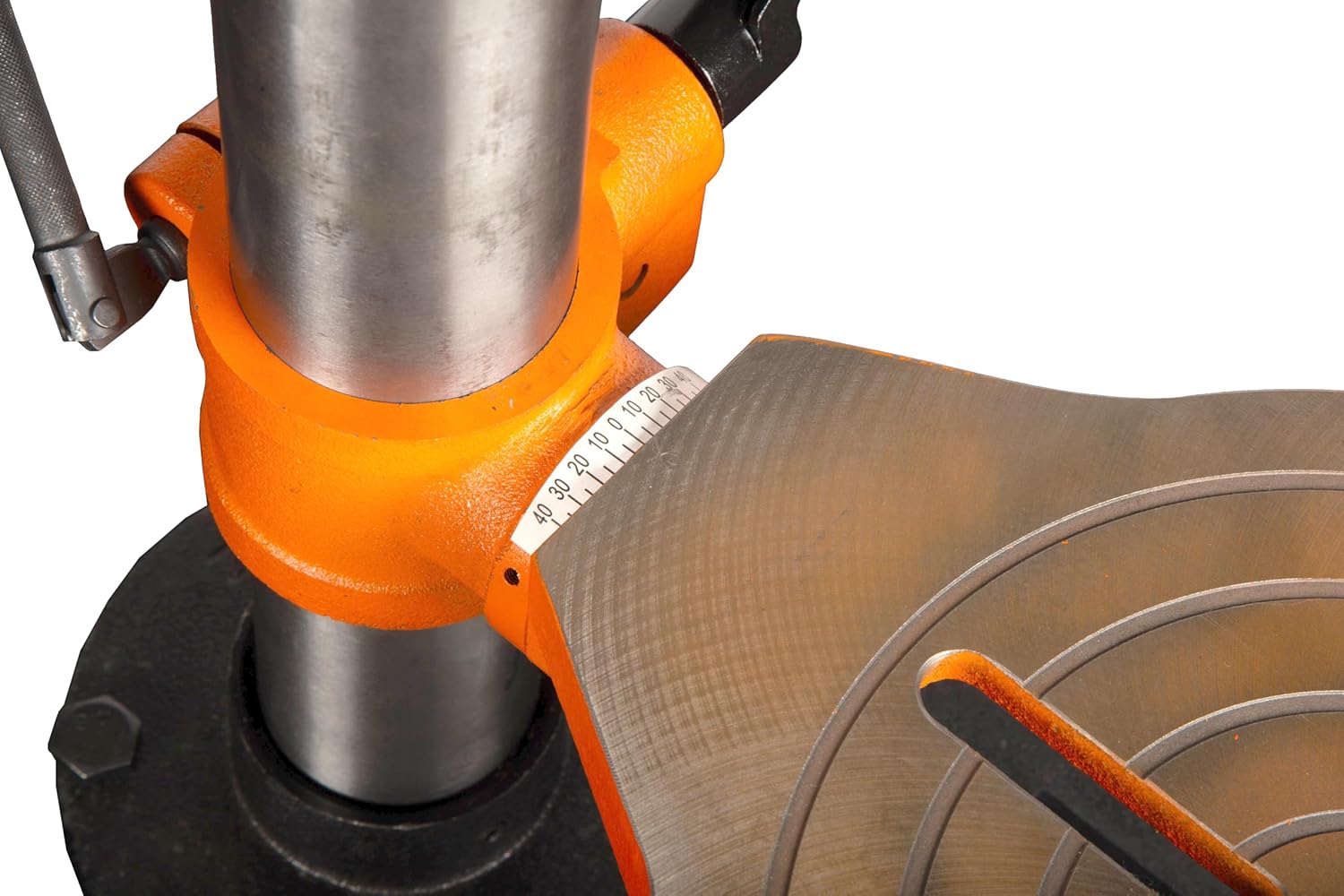

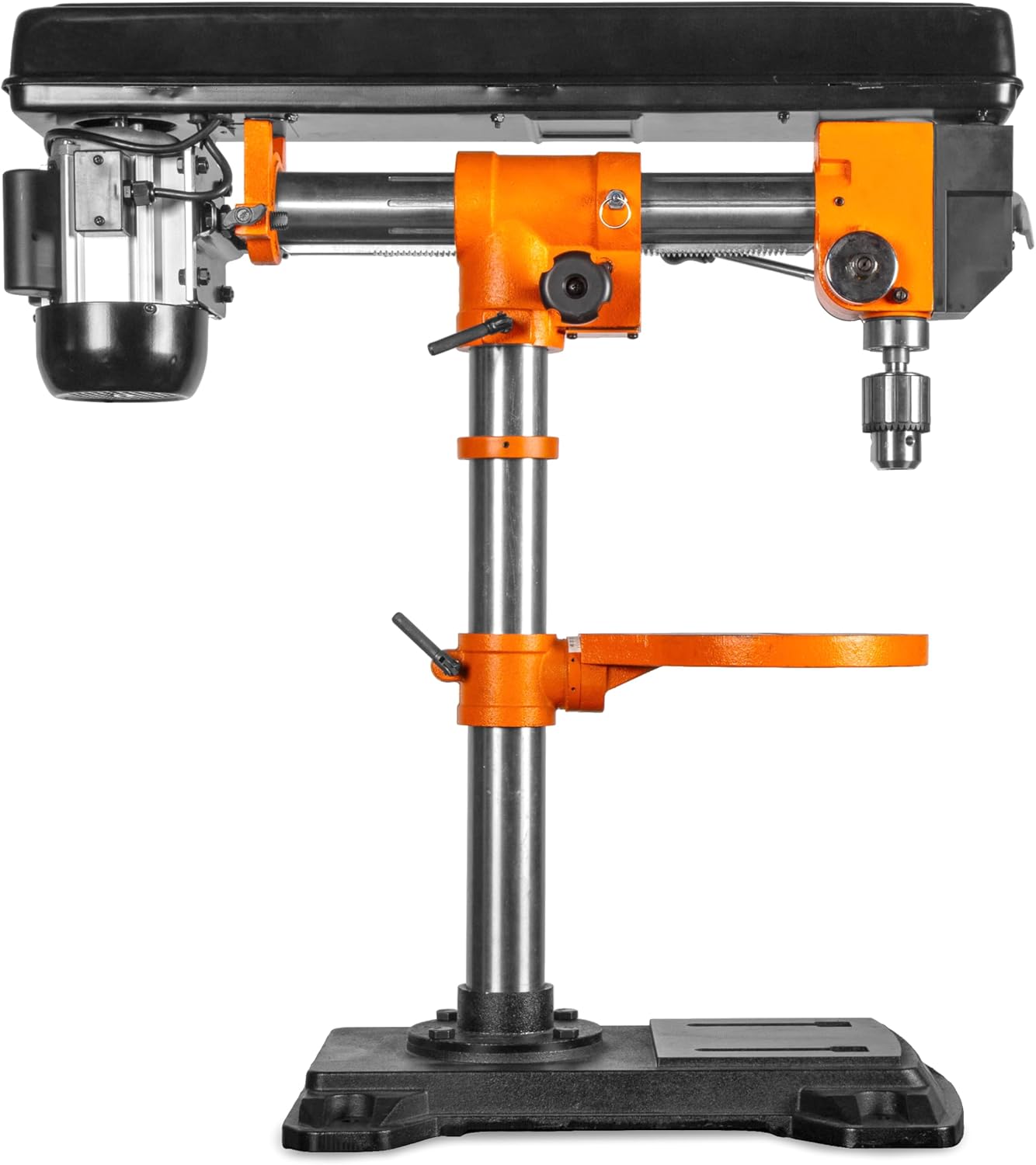

Remember when you could reach the unreachable? With an adjustable swing ranging from 11 to 33 inches, a swiveling head, and a tilting table, the WEN 5-Speed Benchtop Radial Arm Drill Press is designed to tackle nearly any job you can think of. Powered by a 6.2-amp motor, it effortlessly drills through metal, wood, plastic, and more, with the ability to create holes up to 5/8-inch in diameter in heavy-duty, 1-inch-thick cast iron. The durable induction motor features ball bearings, ensuring extended life and smooth, balanced performance. Manually set your speed to 600, 1100, 1700, 2300, or 3100 RPM by adjusting the belt position on the pulleys. The easy-to-read, locking depth stop allows for accurate and repeatable drilling operations. The keyed chuck with MT2 spindle taper accepts drill bits ranging from 1/8 to 5/8 inch in diameter (3mm – 16mm). The 10-inch cast-iron worktable tilts 45 degrees both left and right, allowing for precision in those tricky angled operations, and features slots for easy mounting of clamps or vises. If that weren’t enough, the head also swivels and rotates around the column for maximum versatility. The 15 x 21-inch cast-iron base has pre-drilled holes, making it easy to mount the drill press securely to your benchtop or work surface. Whether you're tackling precision tasks or heavy-duty projects, this drill press delivers exceptional accuracy, power, and versatility. And because it's a WEN product, your radial-arm drill press is backed by a fully stocked inventory of replacement parts, a friendly customer support team, and a two-year warranty. Remember when your drill press adapted to your every need? Remember WEN.

  • Features a 6.2-amp induction motor and a 3-1/8-inch spindle travel
  • Sliding and swiveling head allows users to adjust the swing anywhere from 11 to 33 inches in diameter
  • Operates at 5 different speeds: 600, 1100, 1700, 2300, or 3100 RPM
  • Measures in at 16 by 38 by 33 inches in size with a weight of 105 pounds
  • Includes a tilting 10-inch cast iron worktable, a heavy-duty cast-iron base, a 5/8-inch capacity keyed chuck, and a two-year warranty
UPC 044459423300
Color Black
Voltage 120 Volts
Amperage 6 Amps
Brand Name WEN
Drill Type Drill Press
Unit Count 1.0 Count
Item Weight 51.3 Kilograms
Manufacturer WEN
Model Number 4233
Power Source Corded Electric
Material Type Cast-Iron, Alloy Steel
Item Type Name Cast-Iron 6.2-Amp 33-Inch Radial Arm Drill Press
Number of Speeds 5
Maximum Chuck Size 33 Inches
Included Components Cast-Iron 6.2-Amp 33-Inch Radial Arm Drill Press
Drilling Capacity Wood 1 Inches
Drilling Capacity Metal 1 Inches
Manufacturer Part Number 4233
Maximum Rotational Speed 3100 RPM
Item Dimensions L x W x H 38"L x 16"W x 33"H
