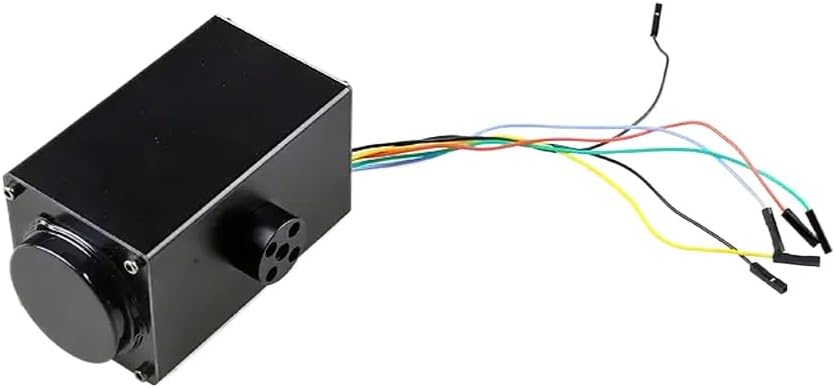

HC700R Camera with 16x Zoom 1080P Recording DVR Function 64GB SD Card Support AV Output PWM Control Compatible with RC FPV Racing Drones and Quadcopters

HC700R 16x Zoom Camera 1080P with DVR 64G SD Card Holder AV Output Camera PWM for RC FPV Racing Quadcopter Features - Includes an SD card holder, supports up to 64GB SD card - -definition recording at 1080P, 25 frames per second - Remote-controlled zoom, start, and stop recording functions - AV output for analog picture transmission - Digital variable 16x autofocus Specifications - Power Supply: 12V - Net Weight: 197g Wiring Definition - Blue: Zoom PWM input (zoom control ) - Green: Record PWM input (video function switch) - Yellow: AV output (video output) - Black: GND (video ground) - Red: VCC 12V input (positive power wire) - Black: GND (negative power wire) Wiring Method - Connect the cyan wire to the PWM port of the receiver, requiring an external 5V power supply. Ensure the power wire shares a common GND with the camera's input power wire for proper control. - The yellow and black wires of the camera must share a common GND with the FPV transmitter to avoid loss. - 12V power input for the camera can be supplied using a 12V BEC module. Function - Camera startup takes approximately 20 seconds. After the picture appears, wait a few seconds before pressing the record button to allow internal background preparation. - After finishing a recording, wait 5 seconds before starting a one or turning off the camera to ensure proper video saving. - To extract video data from the SD card, use the manufacturer-provided "Diskplayer" software. If prompted to format the SD card, do not format. Open the software, locate the video file in "idea 1, " copy it, change the format to "AVI, " and save for playback. Package Included 1 x DVR Zoom Camera Note: For software assistance, the seller to receive the required software via email. Compatibility Disclaimer: This is an aftermarket replacement part.Any brand names or model designations mentioned are used solely for the purpose of demonstrating compatibility.

• The HC700R camera features a powerful 16x zoom capability for detailed long-range footage
• This 1080P -definition camera delivers crisp and clear video quality for FPV racing
• DVR functionality allows for easy recording directly to the included 64G SD card
• The AV output enables real-time video transmission to compatible displays or goggles
• Designed for RC quadcopters, this camera is ideal for FPV racing and aerial photography
